We can supply Nd:YVO4 crystals optically cemented with KTP crystals for
compact diode pumped green lasers. The combination of the lasing and doubling crystals with coatings on the crystal
surfaces acting as cavity mirrors makes it an reality of an ultra-compact green laser
for many applications.

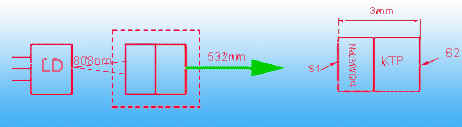

Diode pumped
Nd:YVO4-KTP green laser pointer
Standard Products
Part
No. |
Nd:YVO4 |
KTP |
PDM01 |
1.3x1.3x1 |
1.3x1.3x2.5mm |
PDM02 |
1x1x0.5 |
1x1x2mm |
PDM03 |
2x2x1 |
2x2x3mm |
Coatings: on the pump entrance surface S1: R>99.8% @1064 nm, T> 95% @
808 nm; on
the emitting surface S2: R>99.8% @1064 nm, T>95% @ 532 nm
Performance for reference
Part
No. |
Diode pump power |
Output |
PDM03 |
200mW |
>5mW |
