Material: High
grade quartz
crystals.
Made of two multiple order
waveplates with orthogonal
optical axes.
Optically
contacted with high
transparency. No optical
cement in beam path. Large
wavelength and temperature bandwidths.
Suitable for medium to high power broadband applications
in visible and infrared.
Dimensions Tolerance: +/- 0.1 mm
Wavefront Distortion: < λ/8 @632.8nm
Retardation Tolerance: < λ/300
Surface Quality: 20-10 scratch and dig
Coating: AR coating with R < 0.2% at the center wavelength

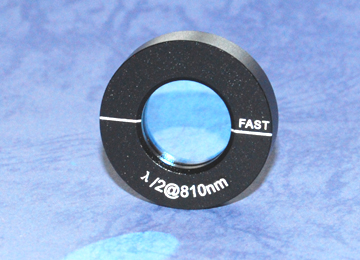

Holder: Anodized aluminum holder
Parts for other wavelengths and with different
dimensions are routinely fabricated by Newlight Photonics Inc..
Please contact us for the waveplates that best
suit your applications.
