Ultrafast Mirrors

Ideal for use with broadband femtosecond pulses
High reflectivity over a very broad band:
+/-50nm @ 800nm
or +/-20nm @ 400nm (the second harmonic)
Low group delay dispersion (GDD).
Optically robust with a high damage threshold.
Both 45^o and 0^o angle of incidence (AOI) are available.
s-pol at 45^o gives higher reflectance and smaller GDD.
Substrate material: BK7 or UVFS glass.

Standard Products

Part No.	AOI	Reflectivity	Size	In stock
MHR1060-750-850-45	45o	>99.5%@750-850nm	Dia 1.0" x 6.0mm	Yes
MHR1060-750-850-0	0o	>99.5%@750-850nm	Dia 1.0" x 6.0mm	Yes
MHR1060-380-420-45	45o	>99.0%@380-420nm	Dia 1.0" x 6.0mm	Yes
MHR1060-380-420-0	0o	>99.0%@380-420nm	Dia 1.0" x 6.0mm	Email/Call
MHR1060-1020-1060-45	45o	>99.5%@1020-1060nm	Dia 1.0" x 6.0mm	Email/Call
MHR1060-1020-1060-0	0o	>99.5%@1020-1060nm	Dia 1.0" x 6.0mm	Email/Call
MHR1060-500-530-45	45o	>99.0%@500-530nm	Dia 1.0" x 6.0mm	Email/Call
MHR1060-500-530-0	0o	>99.0%@500-530nm	Dia 1.0" x 6.0mm	Email/Call

Mirrors for custom wavelengths and with different substrate dimensions are available from Newlight Photonics. Please contact us for the mirrors that best suit your applications.

Mirror Specifications

Angle of Incidence:	0° or 45° UNP
Dimension Tolerance:	Dia (+/-0.1mm) x T (+0.2/-0.1mm)
Clear Aperture:	> 90% central area
Flatness (Coated face):	λ/10 @ 633nm before coating
Surface Quality (Coated face):	Scratch/Dig 10/5
Surface Quality (uncoated face):	Commercial polish
Parallelism:	≤5 arc min
Chamfer:	0.2-0.4mm x 45°

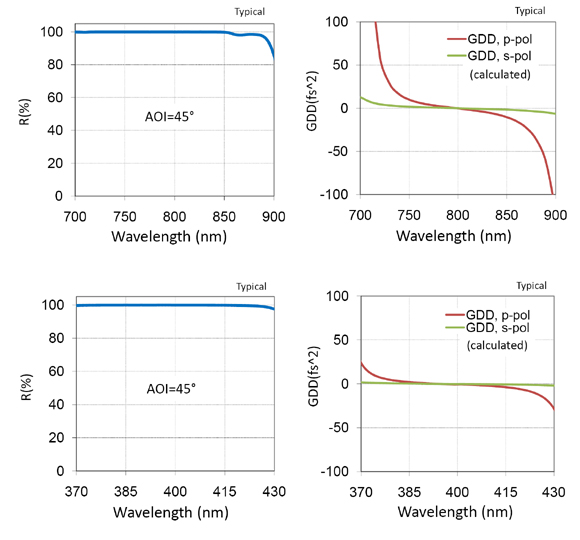

Reflectance and GDD:

Cleaning the Optical Mirrors
