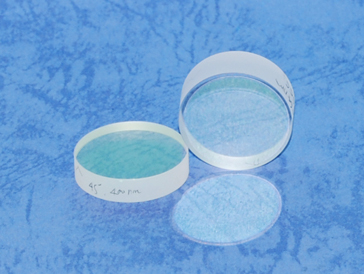

Broadband Steering Mirrors
Standard Products
|
Part No. |
AOI |
Reflectivity |
Size |
In stock |
|
BHR0560-330-380-45 |
45o |
>99.0%@330-380nm |
Dia 0.5" x 6.0mm |
Yes |
|
BHR1060-330-380-45 |
45o |
>99.0%@330-380nm |
Dia 1.0" x 6.0mm |
Email/Call |
|
BHR1060-380-420-45 |
45o |
>99.0%@380-420nm |
Dia 1.0" x 6.0mm |
Yes |
|
BHR1060-750-850-45 |
45o |
>99.5%@750-850nm |
Dia 1.0" x 6.0mm |
Yes |
|
BHR1060-700-800-45 |
45o |
>99.0%@700-800nm |
Dia 1.0" x 6.0mm |
Yes |
Mirrors for
custom wavelengths and with different substrate dimensions are available
from Newlight Photonics. Please contact us
for the mirrors that best suit your applications.
Mirror Specifications
|
Angle of Incidence: |
45° UNP |
|
Dimension Tolerance: |
Dia (+/-0.1mm) x T (+0.2/-0.1mm) |
|
Clear Aperture: |
> 90% central area |
|
Flatness (Coated face): |
λ/10 @ 633nm before coating |
|
Surface Quality (Coated face): |
Scratch/Dig 10/5 |
|
Surface Quality (uncoated face): |
Commercial polish |
|
Parallelism: |
≤5 arc min |
|
Chamfer: |
0.2-0.4mm x 45° |

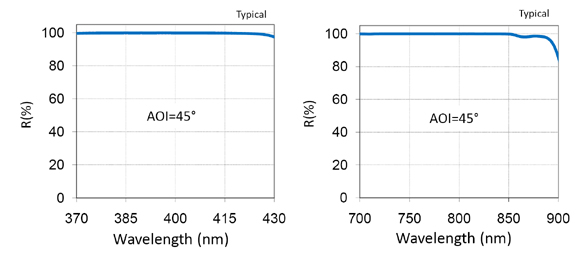

Reflectance Curves
Cleaning the Optical Mirrors
|
High
reflectivity over a very broad band:
