Dove Prisms

Material: Grade A BK7 or UV grade fused silica glass
Designed to rotate an image without deviating the beam.
  The image rotates by twice the angle at which the prism
  is rotated.
Widely used as image rotators.

Dove Prism Specifications

Dimension Tolerance:+0.0, - 0.2mm
Flatness: λ/4 at 632.8 nm
Surface Quality: 60-40 scratch and dig
Clear Aperture: > 85%
Bevel:  0.2 mm to 0.5 mm x 45o
Angular Tolerance: 45° +/-
3'
Coating: AR coatings with R<0.3% at the central
            wavelength are available upon request.

Standard Products

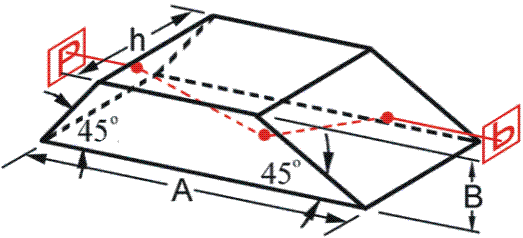

 Geometry and imaging property

Part No.
Material

A(mm)

B(mm)

h(mm)

In stock
BK7 Prisms
DVP0102G BK7

21.1

5.0 5.0 Email/Call
DVP0104G BK7 42.3 10.0 10.0 Email/Call

DVP0106G

BK7 63.4 15.0 15.0 Email/Call
DVP0108G BK7

80.0

20.0

20.0 Email/Call
UVFS Prisms
DVP0102Q UVFS

21.1

5.0 5.0 Email/Call
DVP0104Q UVFS 42.3 10.0 10.0 Email/Call

DVP0106Q

UVFS 63.4 15.0 15.0 Email/Call
DVP0108Q UVFS

80.0

20.0

20.0 Email/Call

Custom prisms with other materials, sizes, coatings or prism angles are available from Newlight Photonics Inc.. Please contact us for the prisms that best suit your applications.
