Dual Wavelength Waveplates
|
 Material: High
grade quartz
crystals.
Single plate design to give
different
retardations for two
specified wavelengths.
Optically robust with a
high damage threshold.
Learn more about waveplates ...
Dual
Wavelength
Waveplate Specifications
Dimensions Tolerance: +/- 0.1 mm
Wavefront Distortion: < λ/8 @632.8nm
Retardation Tolerance (typical): < λ/100
Surface Quality: 20-10 scratch and dig
Coating: AR coating with R < 0.2% at the center wavelength
Holder: Anodized aluminum holder available
upon request |
Structure and
the optical axis
|
Standard Products
|
Part No.
|
Description
|
In stock |
|
WPD03-H800-F400-SP |

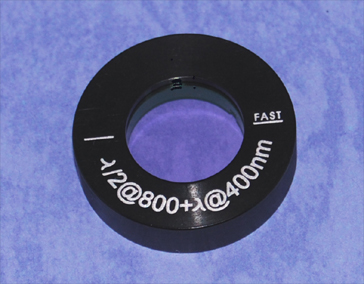

Dual waveplate, λ/2@800nm + λ@400nm
for very short pulses (< 100fs),
Single ultrathin plate ~ 45
µm
to maximize the bandwidth and minimize the dispersion,
aperture 15.0mm, holder OD 1" ( 25.4mm ) |
Yes |
|
WPD05-H800-F400-SP |
Dual waveplate, λ/2@800nm + λ@400nm
for very short pulses (< 100fs),
Single ultrathin plate ~ 45
µm
to maximize the bandwidth and minimize the dispersion,
aperture 1" (25.4mm), holder OD 1.5" ( 38.1mm ) |
Email/Call |
|
WPD03-F800-H400
|
Dual waveplate, λ@800nm + λ/2@400nm,
aperture 15.0mm, holder OD 1" ( 25.4mm )
|
Email/Call |
|
WPD03-H800-H400
|
Dual waveplate, λ/2@800nm + λ/2@400nm,
aperture 15.0mm, holder OD 1" ( 25.4mm )
|
Email/Call |
|
WPD04-H808-H404
|
Dual waveplate, λ/2@808nm + λ/2@404nm,
aperture 20.0mm, holder OD 30.0 mm
|
Yes |
|
WPD03-H810-F405
|
Dual waveplate, λ/2@810nm + λ@405nm,
aperture 15.0mm, holder OD 1" ( 25.4mm )
|
Email/Call |
|
WPD03-H810-H405
|
Dual waveplate, λ/2@810nm + λ/2@405nm,
aperture 15.0mm, holder OD 1" ( 25.4mm )
|
Yes |
|
WPD03-H780-F390
|
Dual waveplate, λ/2@780nm + λ@390nm,
aperture 15.0mm, holder OD 1" ( 25.4mm )
|
Email/Call |
|
WPD03-H780-H390
|
Dual waveplate, λ/2@780nm + λ/2@390nm,
aperture 15.0mm, holder OD 1" ( 25.4mm )
|
Yes |
|
WPD02-F1064-H532
|
Dual waveplate, λ@1064nm + λ/2@532nm,
aperture 0.5" (12.7mm), holder OD 1" ( 25.4mm )
|
Email/Call |
|
WPD02-H1064-F532
|
Dual waveplate, λ/2@1064nm + λ@532nm.
aperture 0.5" (12.7mm), holder OD 1" ( 25.4mm )
|
Email/Call |
|
WPD02-H1064-H532
|
Dual waveplate, λ/2@1064nm + λ/2@532nm,
aperture 0.5" (12.7mm), holder OD 1" ( 25.4mm )
|
Yes |
|
WPD03-F1064-H532
|
Dual waveplate, λ@1064nm + λ/2@532nm,
aperture 15.0mm, holder OD 1" ( 25.4mm )
|
Email/Call |
|
WPD03-H1064-F532
|
Dual waveplate, λ/2@1064nm + λ@532nm,
aperture 15.0mm, holder OD 1" ( 25.4mm )
|
Email/Call |
|
WPD03-H1064-H532
|
Dual waveplate, λ/2@1064nm + λ/2@532nm,
aperture 15.0mm, holder OD 1" ( 25.4mm )
|
Email/Call |
|
WPD03-H1550-H780
|
Dual waveplate, λ/2@1560nm + λ/2@780nm
,
aperture 15.0mm, holder OD 1" (25.4mm )
|
Yes |
Parts for other wavelengths and with different dimensions are routinely fabricated by Newlight Photonics
Inc..
Please contact us for the waveplates that best
suit your applications.
|
