 Material:
Grade A BK7 or UV grade fused silica glass
Design to rotate an image
without deviating the beam.
The image rotates by twice the angle at which the prism is
rotated.
Widely
used as image rotators.

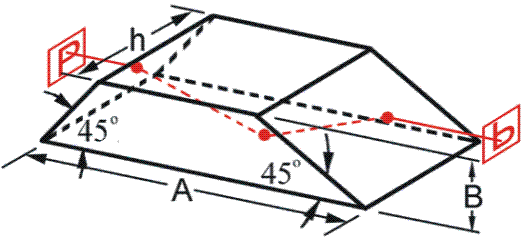

Dove
Prism
Specifications
Dimension Tolerance:+0.0, - 0.2mm
Flatness: λ/4 at 632.8 nm
Surface Quality: 60-40 scratch and dig
Clear Aperture: >80%
Bevel: 0.2 mm to 0.5 mm x 45o
Angular deviation tolerance: 3'
|
