Cr:YAG (Chromium doped Ytterium Aluminum Garnet, Cr:Y3Al5O12) crystal is an ideal material for passive Q-switching of Nd:YAG and other Nd or Yb doped lasers in the wavelength range of 0.8 to 1.2 μm. One of the remarkable features of Cr:YAG is its high damage threshold of 500-1000 MW/cm2. Its absorption band extends from 800 nm to 1200 nm and peaks at around 1060nm with a very large absorption cross section. Passive Q-switched lasers incorporating Cr:YAG crystals have been extensively manufactured at low cost and with reduced system size and weight.

Please use "Add to Cart" to place the interesting products in the shopping cart. Check out with online payment or ask us for the prices/availability via the shopping cart. Filters below or the form at the bottom can be used to assist product search or make further inquiries.
Part No. Application Aperture Coating Price Availability Add to Cart

Basic Properties:

Chemical Formula Cr4+:Y3Al5O12
Crystal Structure Cubic garnet
Recovery time 8.5 μs
Hardness  8.5 Mohs
Density 4.56 g/cm3
Thermal conductivity 12.13 W/m/K
Refractive index 1.82 @ 1064 nm
Ground state absorption cross section σs1=4.3x10-18 cm2
Excited state absorption cross section σs2=8.2x10-19 cm2
Fluorescence lifetime 3.4 μs


Specifications of Cr:YAG components:

Orientation:    The rod axis is along <111> or <100>
Cr4+ concentration:    0.5 mol% ~ 3 mol%
Aperture 2x2 ~ 14x14 mm
Length: 0.1 ~ 12 mm
Initial transmission (T0):  5% ~ 99%
T0 tolerance:                +/- 2%
Flatness:   λ /10 @ 633 nm
Parallelism:    20 arc sec
Perpendicularity: 5 arc minutes
Surface finishing:    20/10 scratch/dig to MIL-O-13830A
Wavefront distortion:    less than λ/8 @ 633 nm


Anti-Reflection (AR) Coating:

AR coatings are available @ 1064 nm or other wavelengths. The typical reflectance is R < 0.20%  per surface.

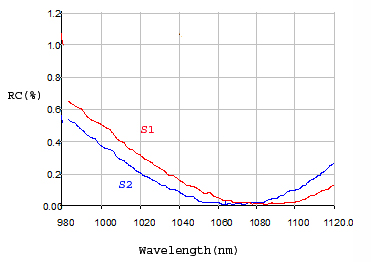

Typical AR coating curve @ 1064 nm:
